nBlue™ BR-EVAL-LE4.0-S2A
nano ampere network module
$99 OEM Evaluation Kit

BR-LE4.0-S2# Summary Spec. (392KB) - Class1, Class2, and Class3 Bluetooth performance wireless communication packet radio modem module compliant to Bluetooth v4.0. Code space available for client custom applications. Features include: Long-distance communication due to its high RX sensitivity, real time clock, UART, SPI and USB interfaces available to various applications. FCC, IC, CE, RoHS, and Bluetooth compliant ISM 2.4GHz band module. Operating temperature range: - 40~+85°C, Three types of models: With/without antenna, or U.FL connector are provided both with software adjustable transmitter power and various low energy consumption modes. Easy to use AT Command interface. Field upgradeable firmware.

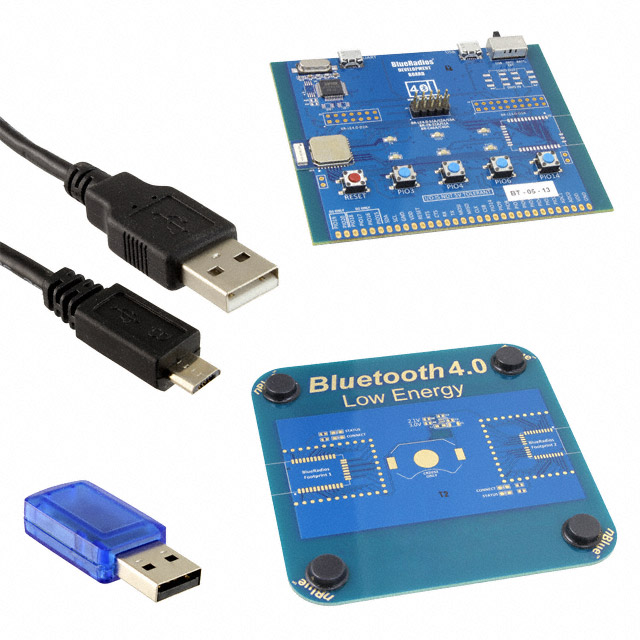

$99 BR-EVAL-LE4.0-S2A Evaluation Kit includes:
BR-BOB-LE4.0-S2A BLE module on test "Breakout Board"
BR-USB-LE4.0-S2A "USB Evaluation Dongle"
Quick Start Guide
BLE AT Command Set User Guide PDF e-mailed.

Note: Due to high initial demand only one kit purchase per client.

$799 - Purchase our Technical Support option and we will assist you from initial wireless architecture to reviewing PCB RF layouts.

nBlue BR-LE4.0-S2# is a standalone solution and requires no firmware. Custom client applications can be written directly onto the nBlue, which supports both analog and digital peripherals, eliminating the need for a second costly microprocessor. Alternately, the BR-LE4.0-S2# can be integrated into an existing design as a HCI network processor device, with a host processor running the core application and the BR-LE4.0-S2# providing Bluetooth low energy communication.

$99 - Purchase sample nBlue BR-LE4.0-S2A BLE module with ceramic chip antenna

Note: Due to high initial demand only one sample per client.

$119 - Purchase
BR-USB-LE4.0-S2A nBlue USB Evaluation Dongle
Contains BR-LE4.0-S2A module
External push button
Removable smoke plastic enclosure
Breakout pads for testing
No software drivers required
Serial FTDI or USB 2.0 support

Note: Due to high initial demand only one sample per client.
